Corne V4.1 Split Keyboard - Low Profile Version
Corne V4.1 Split Keyboard - Low Profile Version
Low stock
Couldn't load pickup availability
This is a barebone keyboard kit with hotswappable PCB.
CAUTION : DO NOT CONNECT/DISCONNECT THE 2 HALVES WHILE USB-C IS CONNECTED
Included in the kit:

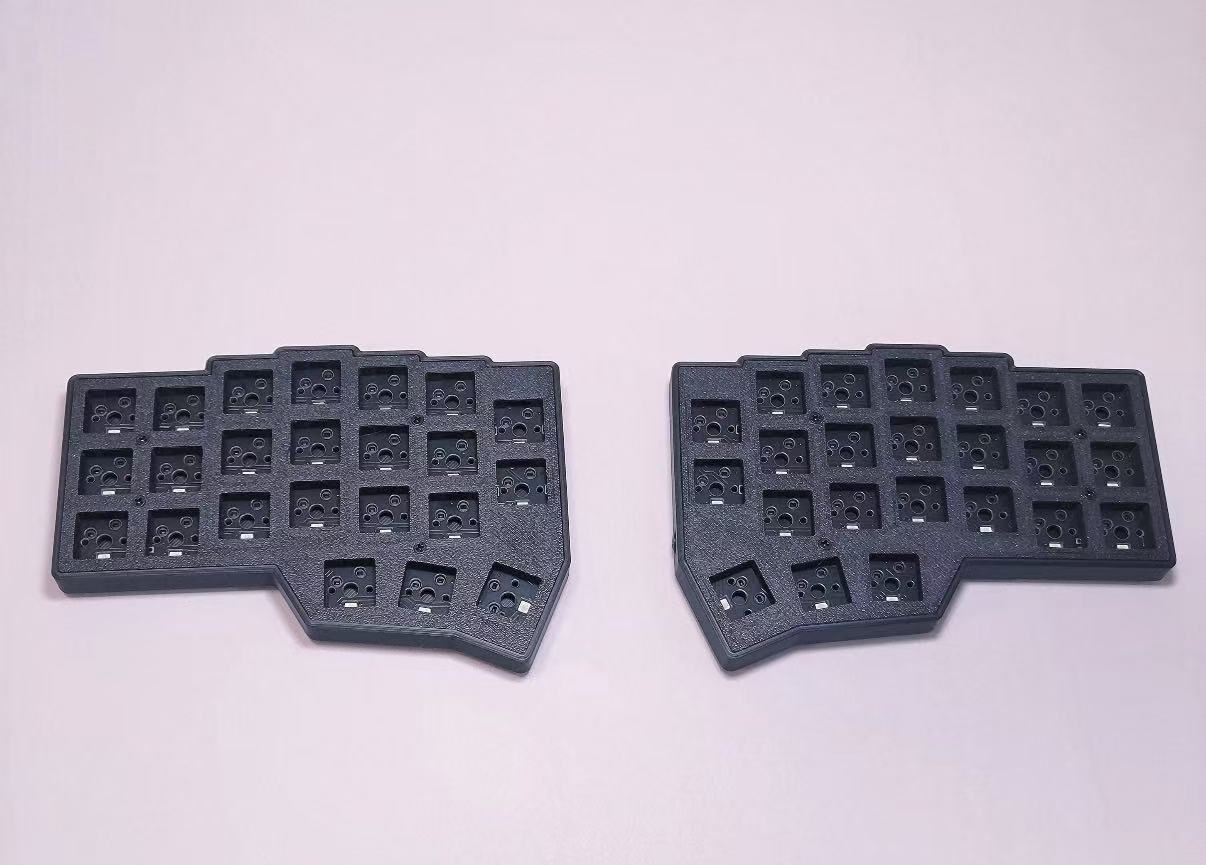

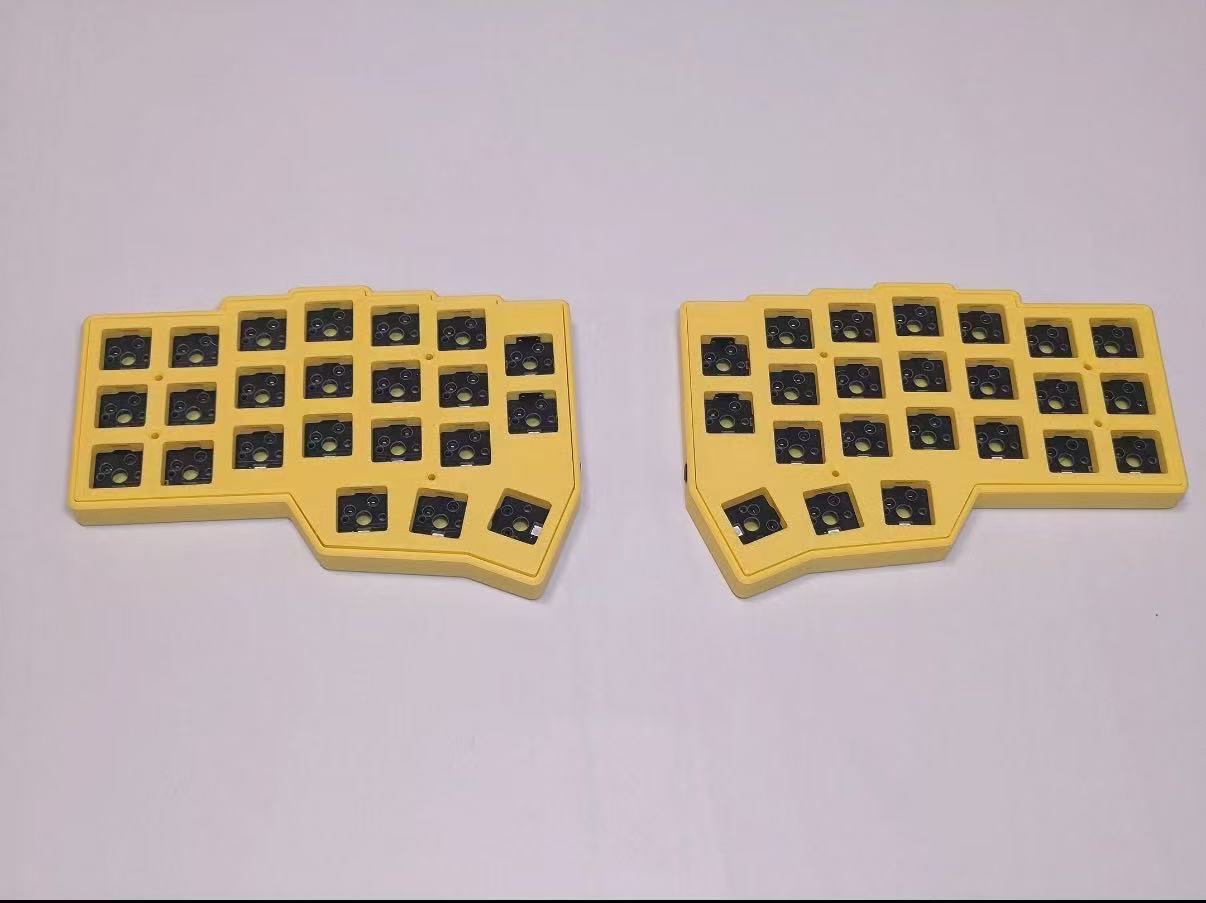

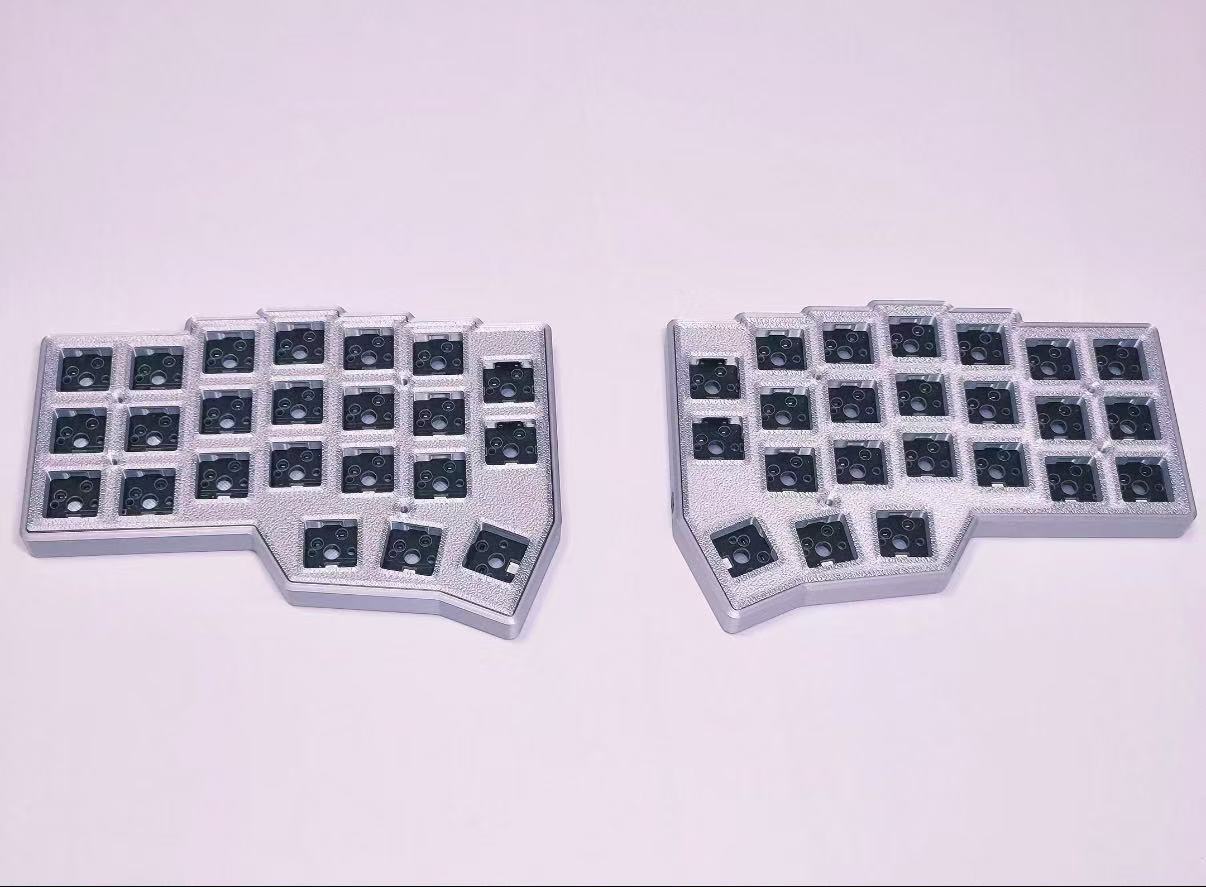

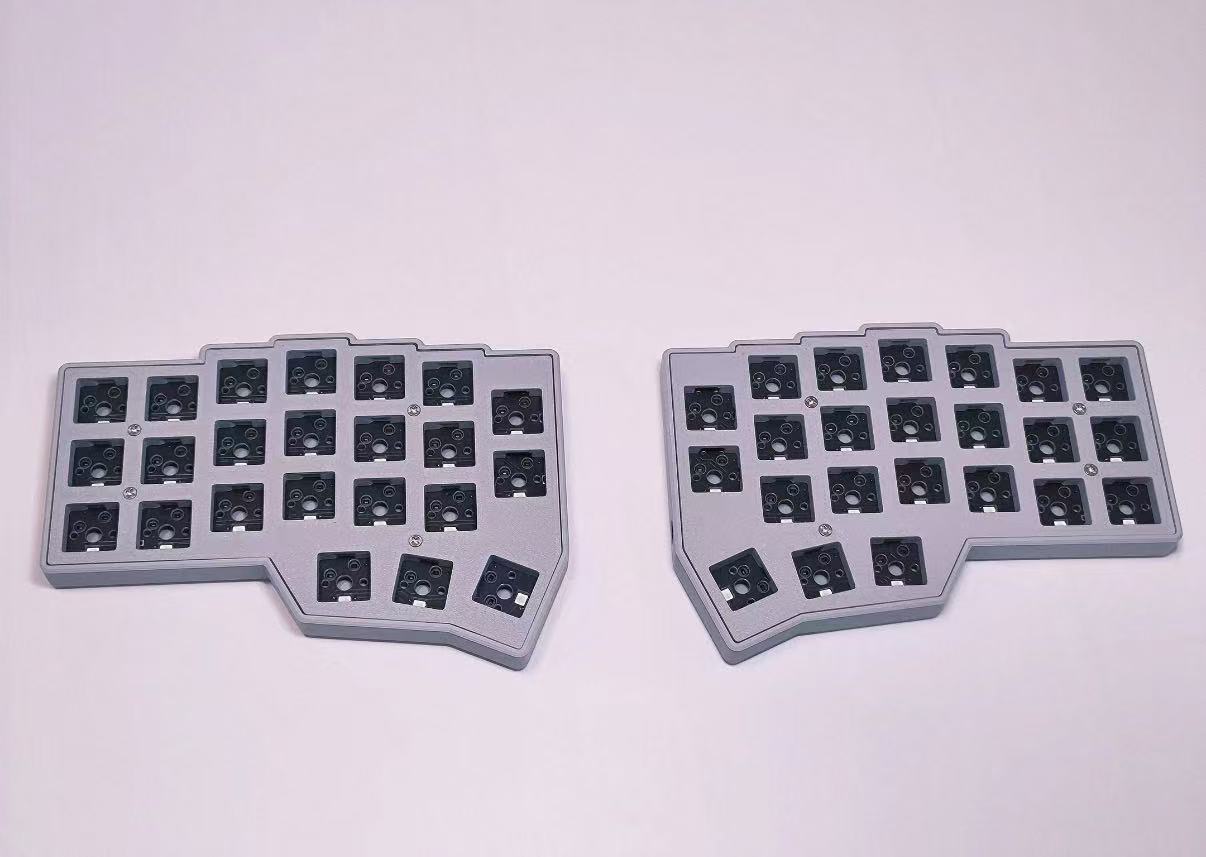

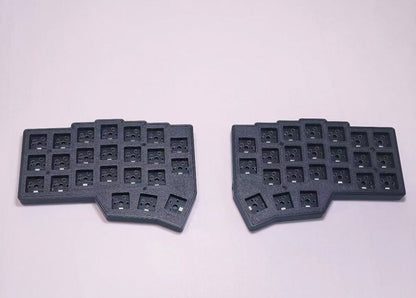

- Bottom PLA case × 2
- Top PLA plate × 2
- Corne v4.1 Hotswap PCB × 2

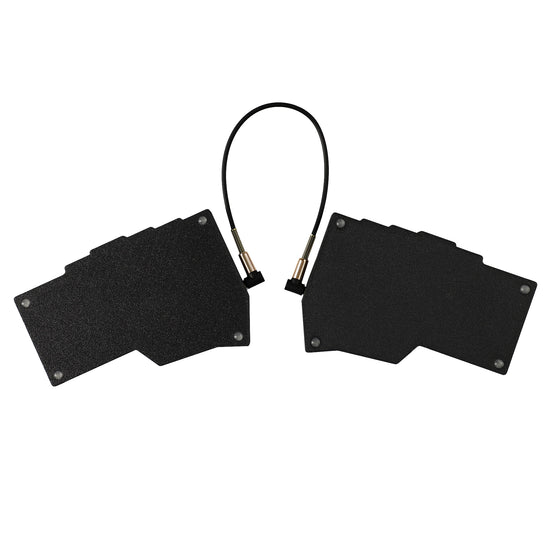

- PCB connection data cable (TRS)
NOT Included in the kit but required to finish build:
- USB A to C cable
- Keycaps
- Kailh Choc Switches
Notes:
- This is a Low Profile version and only supports Kailh Choc 1350 and 1353 switches.
- This is a 3D-printed kit of PLA material.
- Due to the nature of 3D printing, there may be some surface imperfections.
- This is a barebone kit and comes partially assembled.
1. Contains two parts and a TRS cable. Note: The TRS cable connecting the two parts does not support hot plugging, so do NOT plug or unplug the keyboard when it is powered on. The Type C cable can be plugged into either part.
2. Type-C Wired single-mode only, full key south RGB and can be programmed with QMK VIAL.
Share

Using this to type the review. Since the board already has hotswap sockets, it's literally plug-and-play when it comes to preparation.
Pros:
* Keyboard does the job well; haven't encountered any issues with syncing or input delays.
* Really good value considering price
* Super simple set up as the board is pre soldered and hot swappable
* Includes RGB
* Works with Vial software out of the box
* This is the 46 key variant and not the 42 key one.

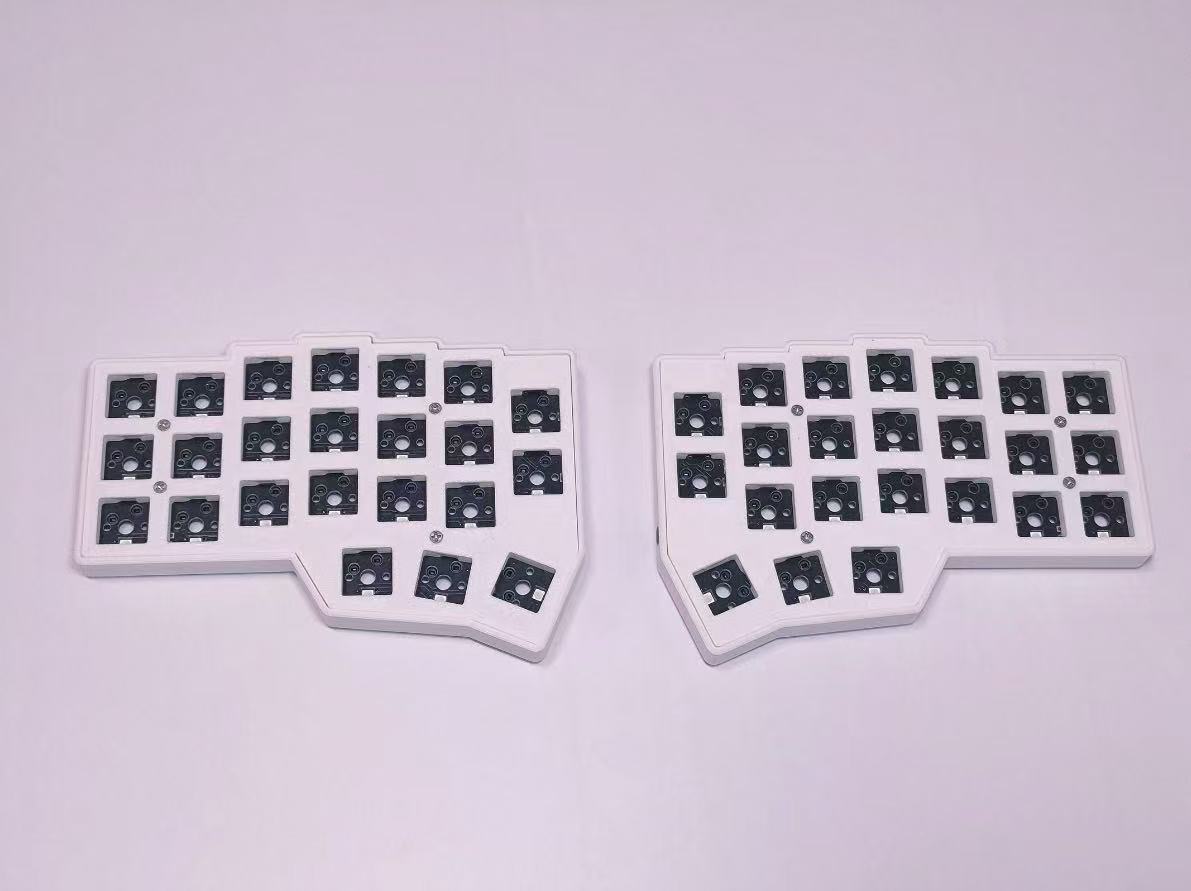

* Build quality is solid and sturdy. I bought the white color which looks great even without the RGB. But with RGB, it dazzles like a Mantis Shrimp.
More or less as the title says; it's perfect for people who want a split KB but don't want to go through either the hassle of getting the primitives manufactured, or have a lot of cash in their banks to shell and get a prebuilt costing tons. You get the sweet spot here.
Cons:
* My hands are a tad bit larger than average. Would've been perfect if the board was also just a bit larger (say an inch or two). I'll put measurements of this board at the bottom of the review for reference.
* Electromagnetic Interference is known to be an issue with this board: https://github.com/foostan/crkbd?tab=readme-ov-file#notice. This issue's present on this board as well (happened with me). But it's not really a major problem. This is a known issue across multiple Corne vendors.
* No builtin tenting mechanism: you can add your own easily, however.
Measurements:
Length (along the 6-key/button row): 13.7 cm
Width: The keyboard doesn't really have uniform width (as the board's width increases as you go from where your pinky sits towards the thumb), so I'll put three sections instead:
Near pinky finger (3 key/button columns): 6.1cm
Middle/center column of buttons ('topmost' point to the pointed 'peak' immediately down below the same column): 8.6cm
Near where thumb would sit (from corner close to the USB-C socket to the bottommost point on the board): 9.2cm
So it's not really a large board, but you can get the hang of it if you tent, and unless you have very large hands, you'll figure out your comfort spot.
To conclude, this keyboard does absolutely deliver on what it aims for and is a solid investment.
