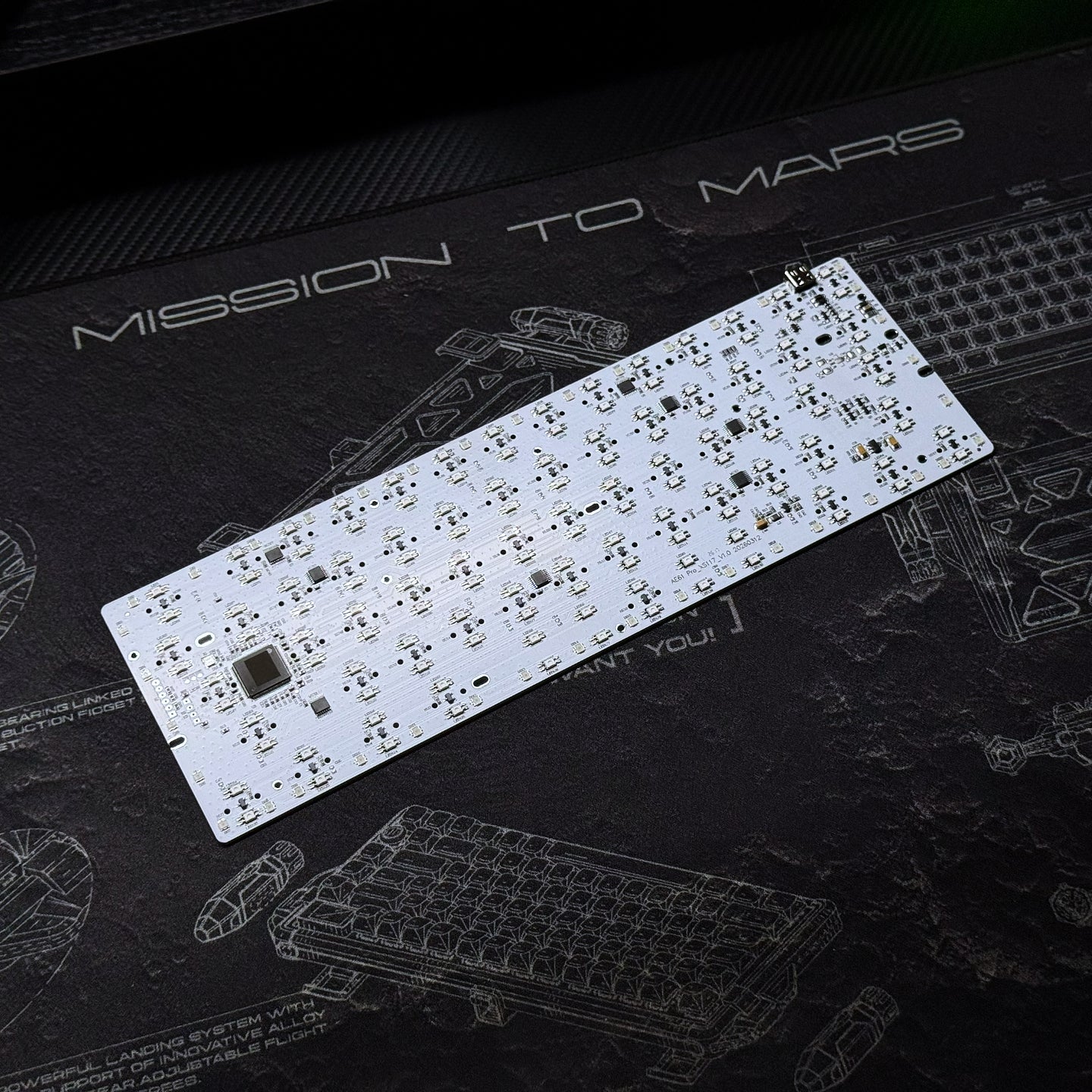

Everglide AE61/AE64 Pro
A next-generation Hall Effect keyboard platform built for ultra-low latency gaming and high-performance custom builds. The AE61 and AE64 Pro HE combines Sparklink 480MHz processing, true 8K polling, and precision Rapid Trigger support in a compact GH60-compatible layout.
Specifications
| Feature | Details |
|---|---|
| Layout | 61/64-Key Compact Layout |
| Mount Compatibility | GH60 Compatible |
| Case Compatibility | Standard GH60 Cases |
| Connectivity | Wired USB-C |

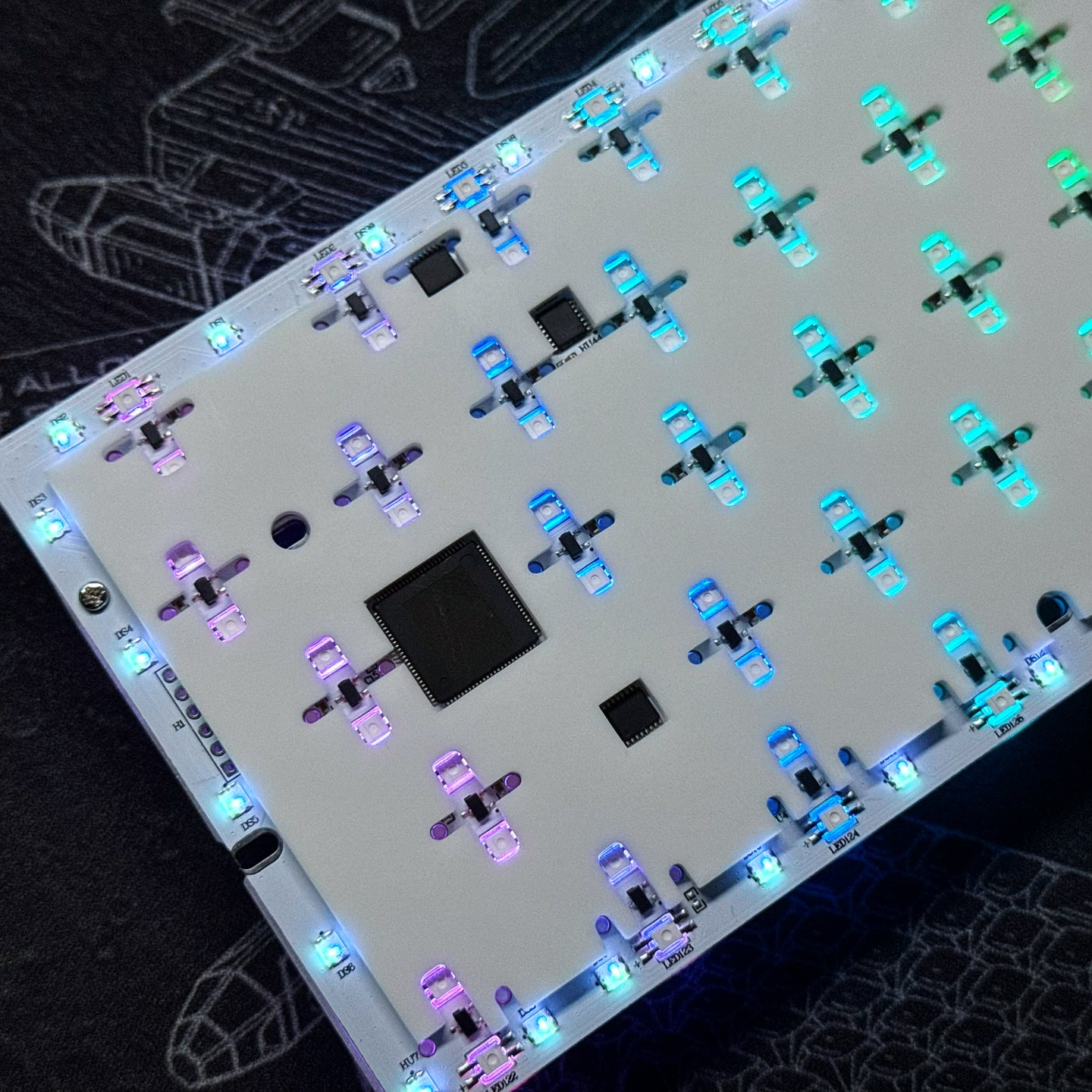

| MCU | Sparklink 480MHz |
| Polling Rate | 8000Hz |
| Latency | ~0.08ms – 0.09ms |
| Rapid Trigger Precision | 0.001mm |
| Actuation Range | 0.001mm – 3.3mm |
| Switch Type | Magnetic Hall Effect |
| ADC Input | Dedicated WASD ADC Direct Connection |

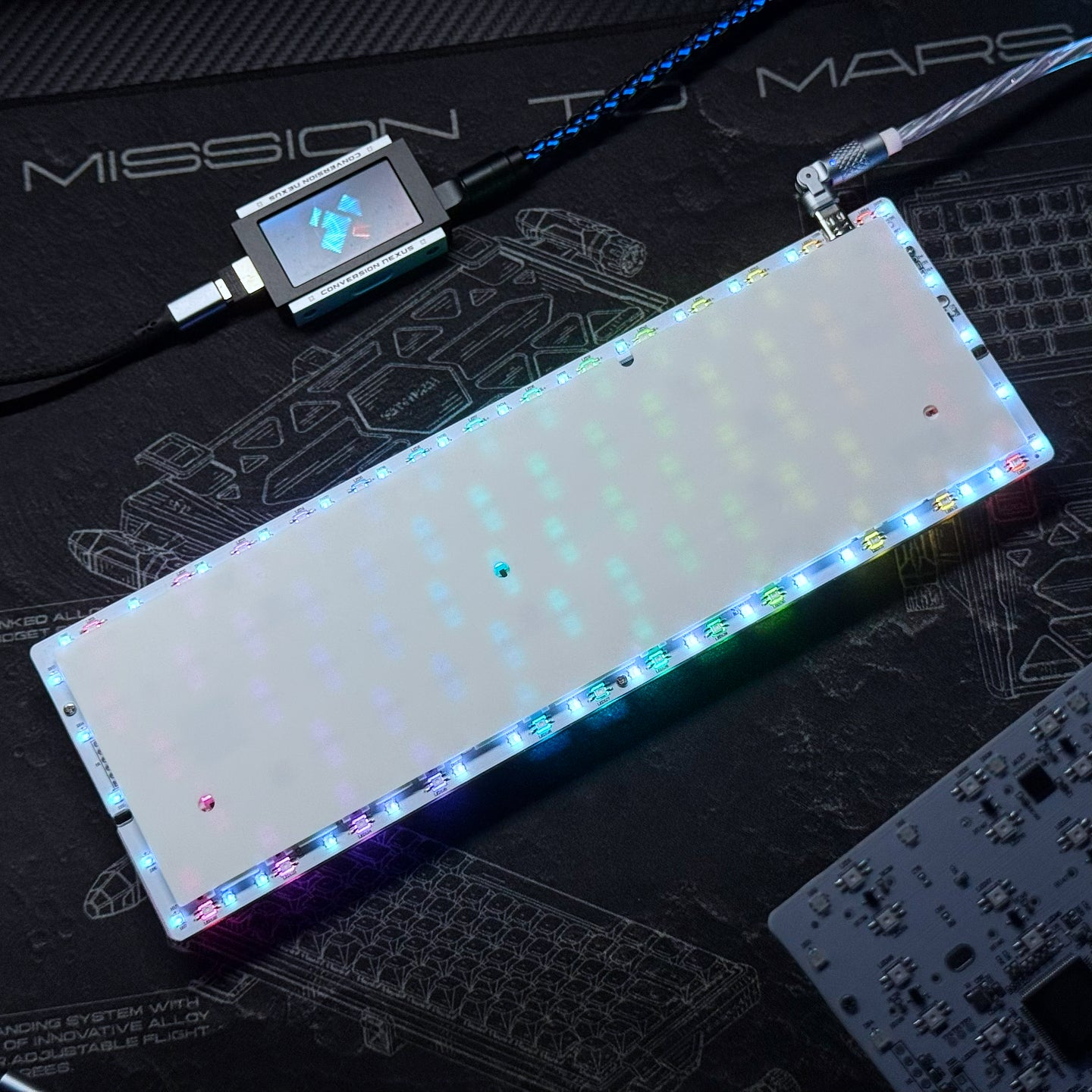

| RGB LEDs | 174 Total LEDs |
| Per-Key LEDs | 136 |
| Spacebar LEDs | 10 |
| Underglow LEDs | 38 |
Features
- True 8KHz polling for ultra-fast input response
- Adjustable actuation and Rapid Trigger support
- Analog Hall Effect sensing for precision movement control
- Dedicated ADC WASD channels for competitive FPS gameplay
- Multi-layer acoustic tuning for cleaner sound profile
- Compatible with most mainstream magnetic switches
- Designed for custom GH60 keyboard builds

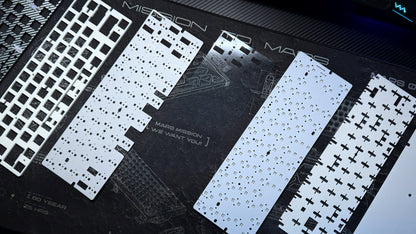

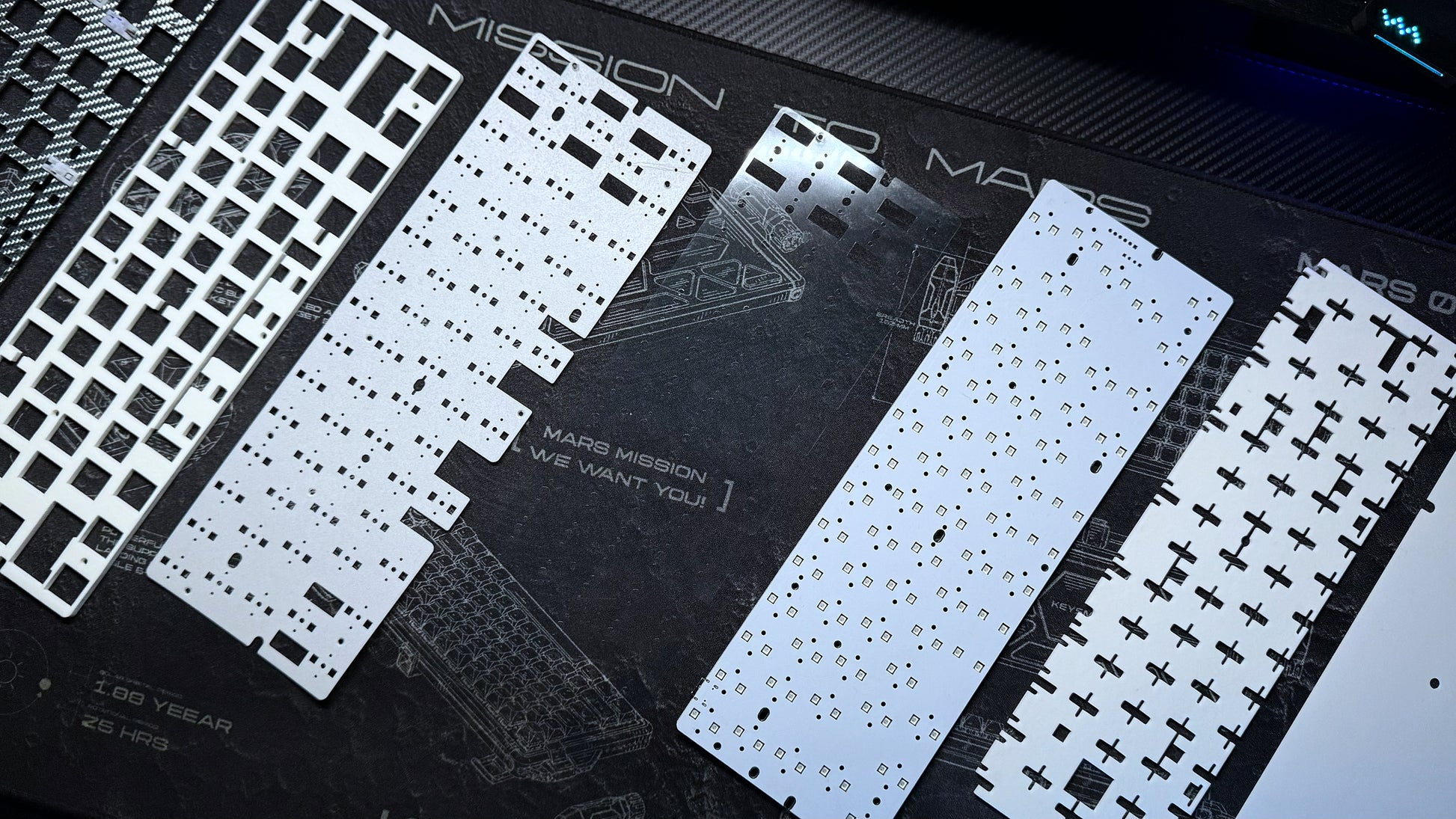

Plate Options

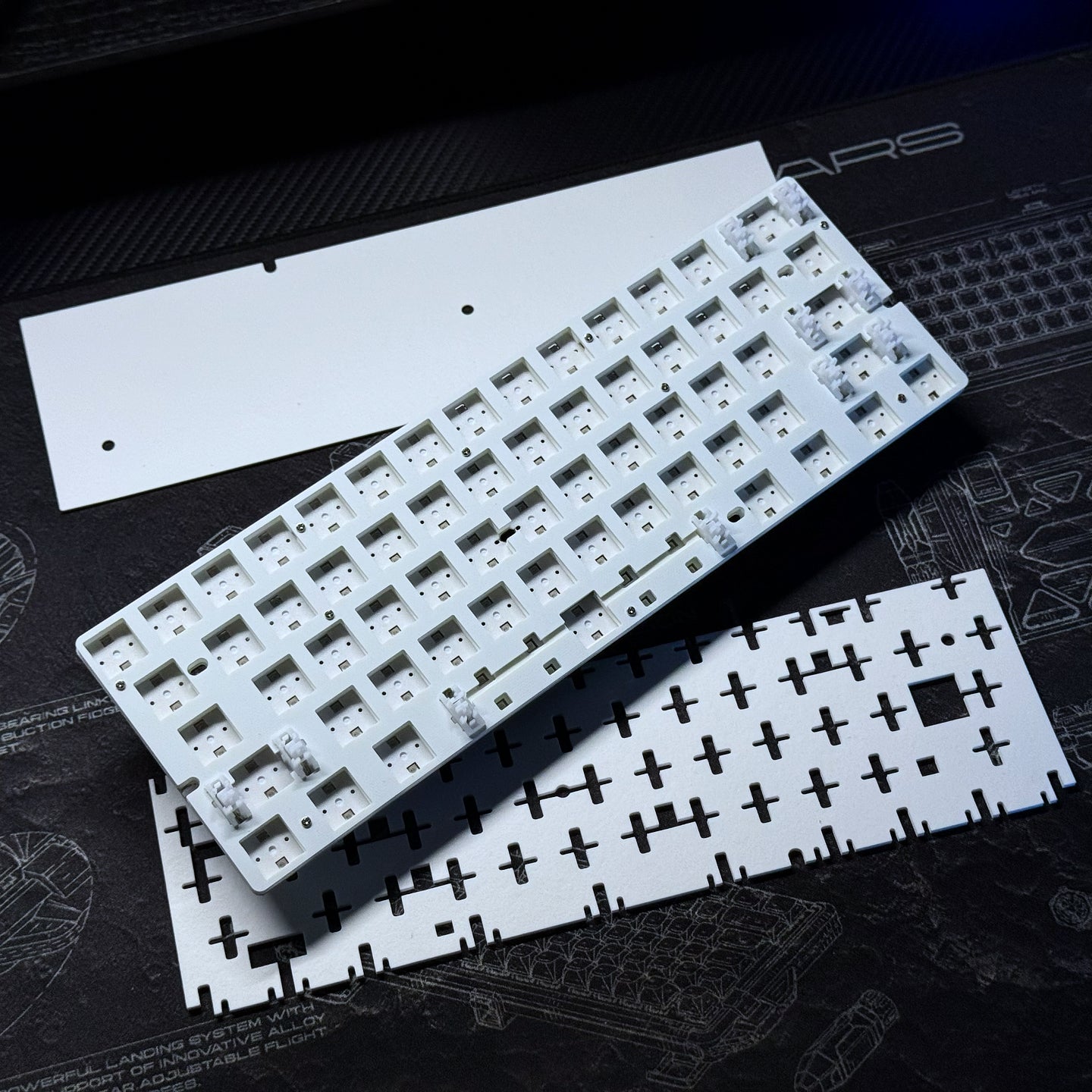

Aluminium Plate

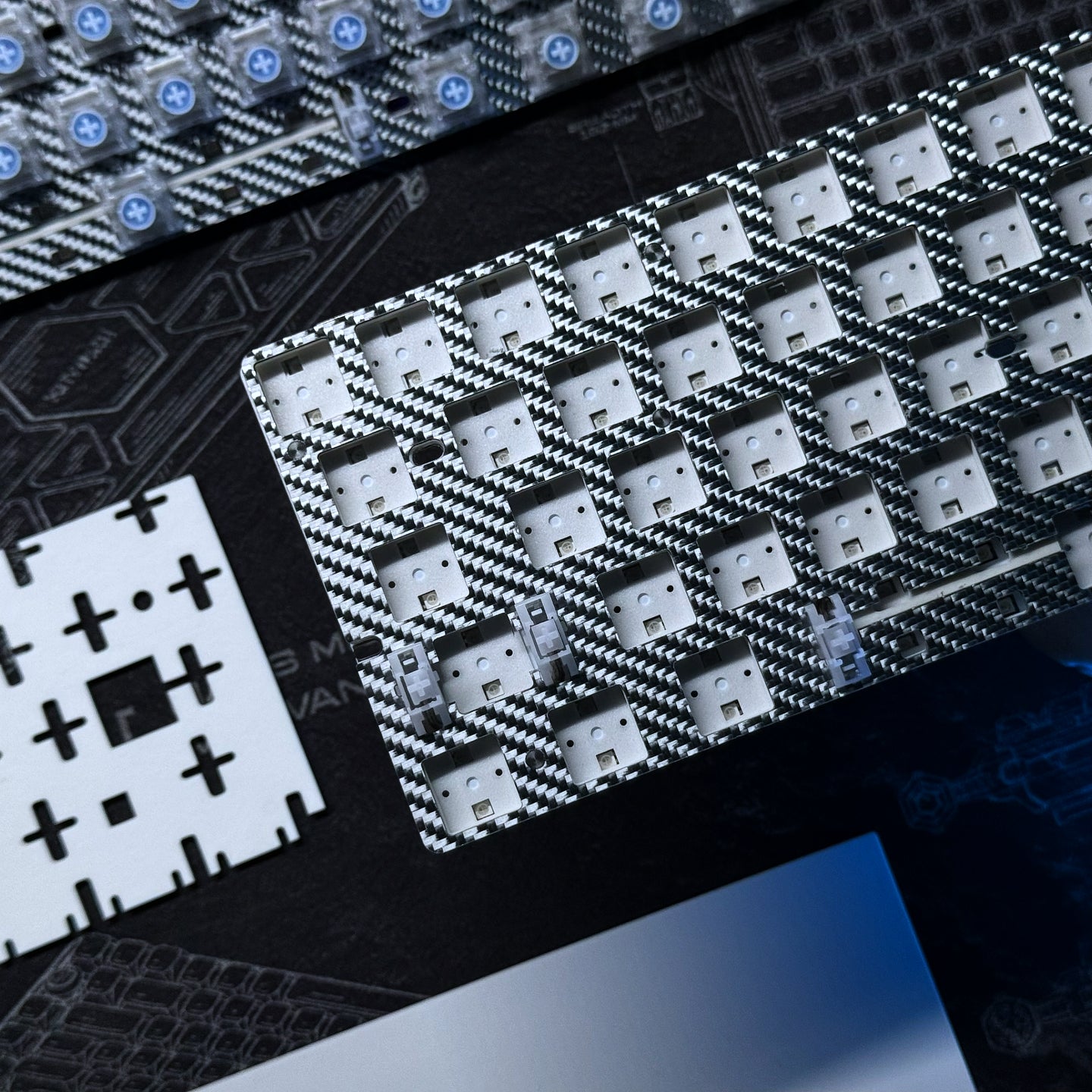

Carbon Fiber Plate

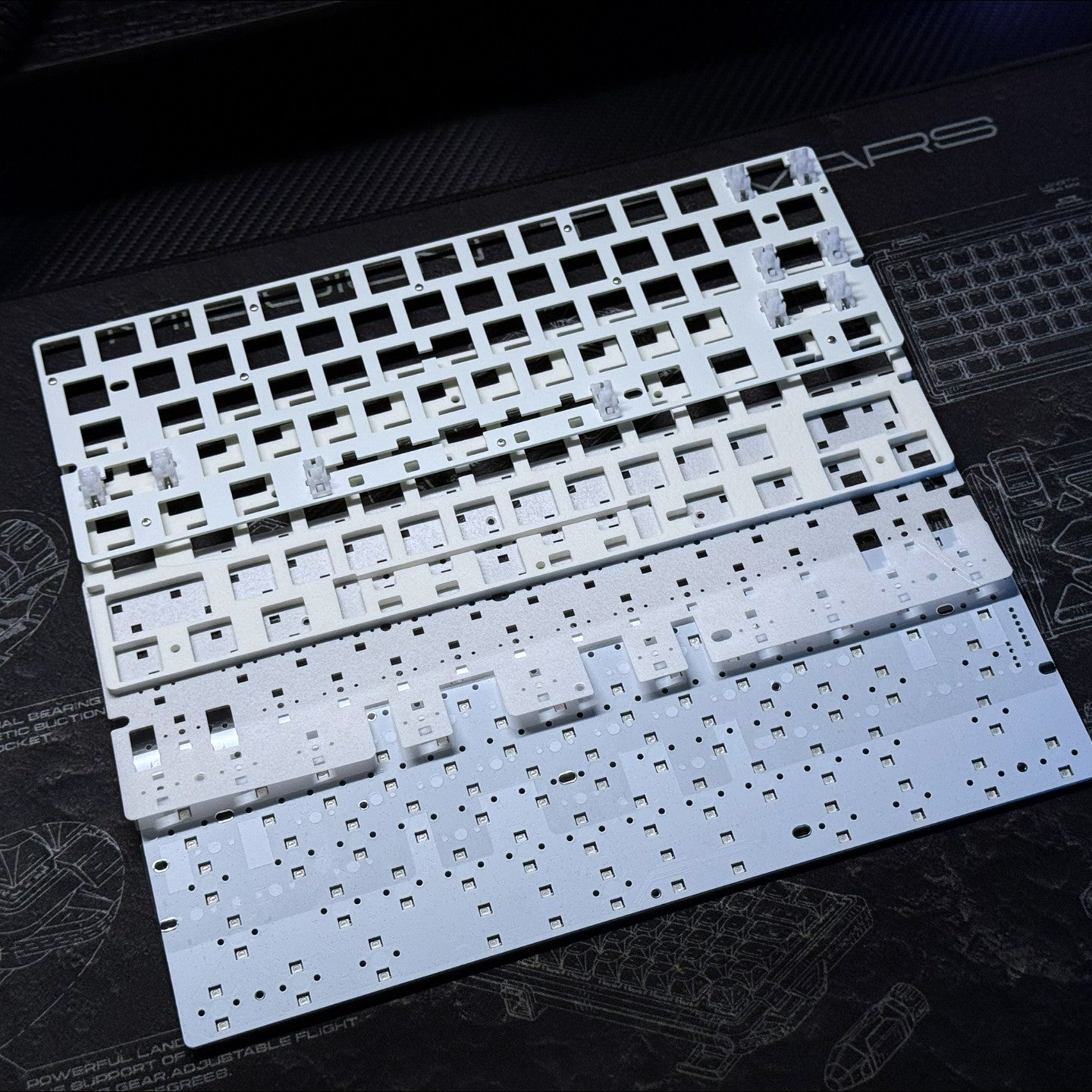

FR4 Plate
Internal Structure
- Poron Sandwich Foam
- IXPE Foam Layer
- PET Film Layer
- Case Foam
Switch Compatibility
Supports most mainstream magnetic switches.
Note: Switches exceeding 680 magnetic flux may introduce dead zones on certain configurations.
Layout:
AE61 :
AE64 :
Share

got myself an ae64pro (alu) and im in love. using it on my 2nd custom build and even the software is good.
Pros:
- Great VFM, kit comes with foam, plate, pcb, stabs.
- a LOT of LEDs.
- Software is browser based.
- Arrow keys in 60% size.
Cons
- Software is functional but subpar imo, plus chinese text in switch selector.
- Keys are shifted to the left for the Z row by 0.25u, making the shift 2u and the alt,fn,ctrl, and shift 1u in the right side. (Personally though, I didn't find this too much of a trouble, It's not very difficult to get used to)
- Personal preference, but there's no "color palette mode" to pick a color for the RGB using the keyboard itself, like Fn+Space in a Redragon K617 fizz. You gotta open the software if you want to change the color to something specific, or cycle through the primary colors.
Overall, I think it's unquestionably better than anything you can buy for INR 3500 to complete the guts of a custom build, considering even if you go for the cheapest possible mech build, the pcb itself without anything else would be something like dk61 (INR 2500). Ofcourse, then you'd get qmk, cheaper switches, and better control over what you want in your build, but it'd still shoot way past 3500.
P.S. KEYCAP COMPATIBILITY WARNING!
Make sure you get a Keycap set that has the respective modifier keys mentioned above!! standard 104 key sets won't have them!!!

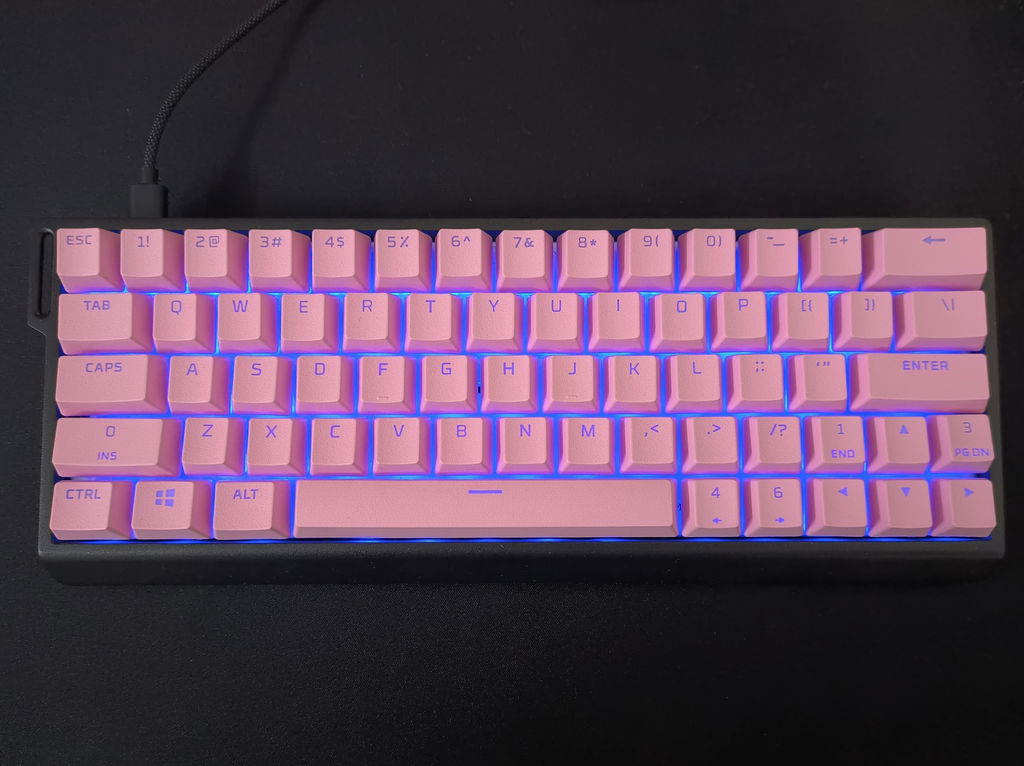

BUT If you've already got a 104 key set and don't wanna buy another set of keycaps, you can still use it, albeit it'd look a lil ugly. All you gotta do is use the keys from your numpad to substitute for the 1u and 2u keys and remember which key does what, cause the legends won't help you. (pic related, i used the Hyperx pbt keycaps here).
P.P.S.

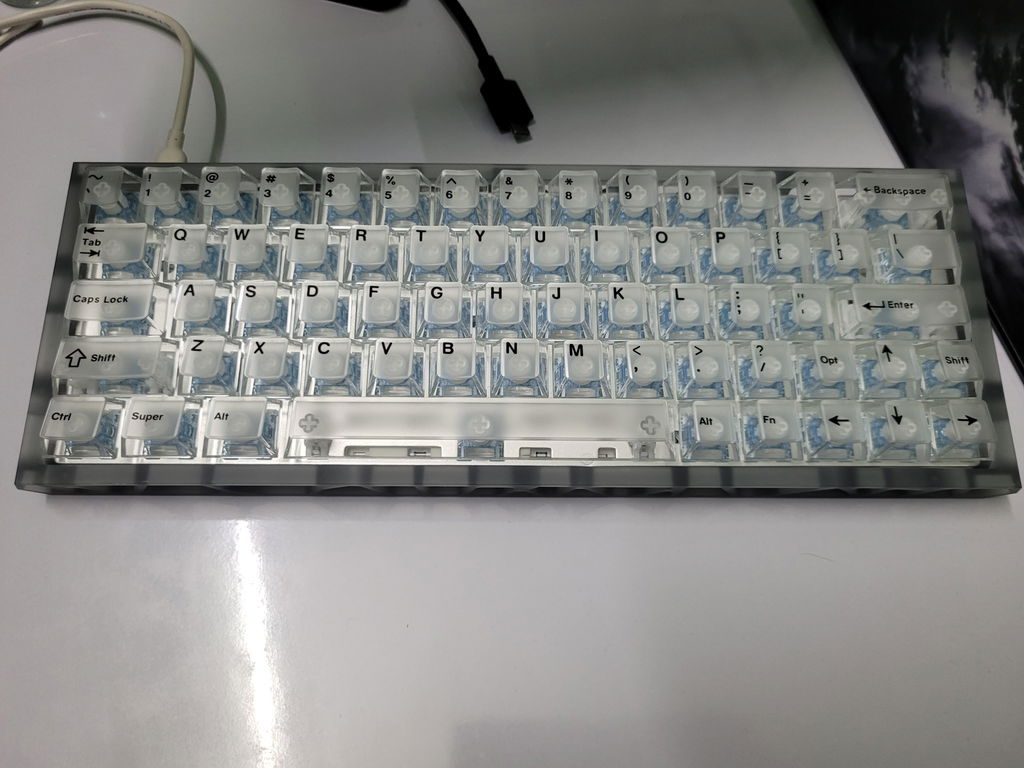

Make sure you get something like a holy60 case or a translucent case + transparent/translucent keycaps to get the most out of the LEDs.
Baught for RGB but only use single color.
RT works fine, good enough for anyone.
Some switches don't fit flush with plate as there is separate foam under each switch.
Plate has rounded edges, web software works but annoying.
Can't really import profile without making a account.
Switch selector is in Chinese.
RGB either get too bright or when at lower percentage the colour will be different(same as venom)
Hate the 2U shift. Makes the row shift slightly left.
But it's still great for the price.
