F12 / F13 PCBs

Manufactured by Emperor

All the PCB options have H88nu and H87nu edge cutout.

Hotswap PCB:

- Standard F12/F13 TKL Layout
- RP2040 MCU based
- 6.25U and 7U Bottom
- Stepped and Standard Caps Lock
- Split or full Right Shift
- Split or full Backspace
- Breakaway USB Port and JST option
- RGB Caps Lock and Scroll Lock LED Indicators on board
- USB-C
- Spare diodes available on PCB

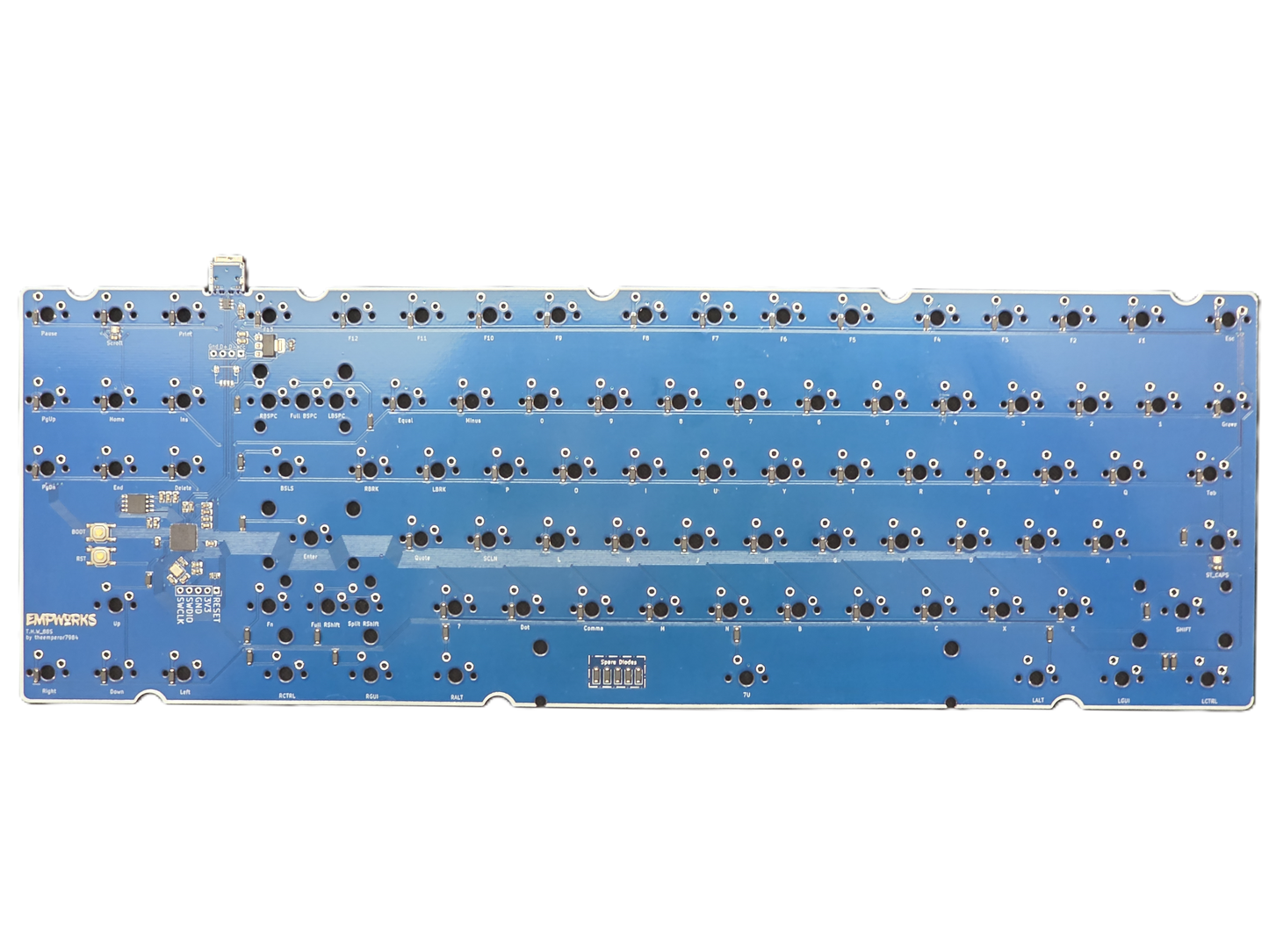

Solder PCB:

- Standard F12/F13 TKL Layout
- RP2040 MCU based
- Fixed 7U (Tsangan) bottom row
- Only Stepped Caps Lock
- Split or full Right Shift
- Split or full Backspace
- Breakaway USB Port and JST option
- RGB Caps Lock and Scroll Lock LED Indicators on board
- USB-C
- Spare diodes available on PCB

Firmware files (VIA and VIAL included) : https://github.com/EmpWorks/Neo_macro_tkl_firmware

1 year warranty
