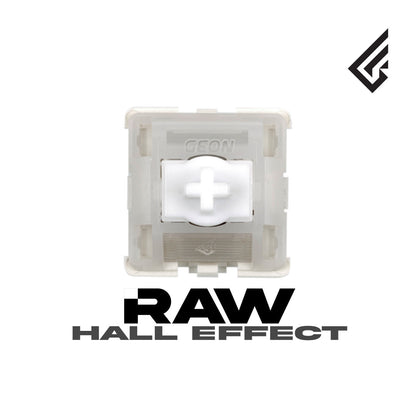

• Mechanical keyboard switch with clear housing and white cross stem

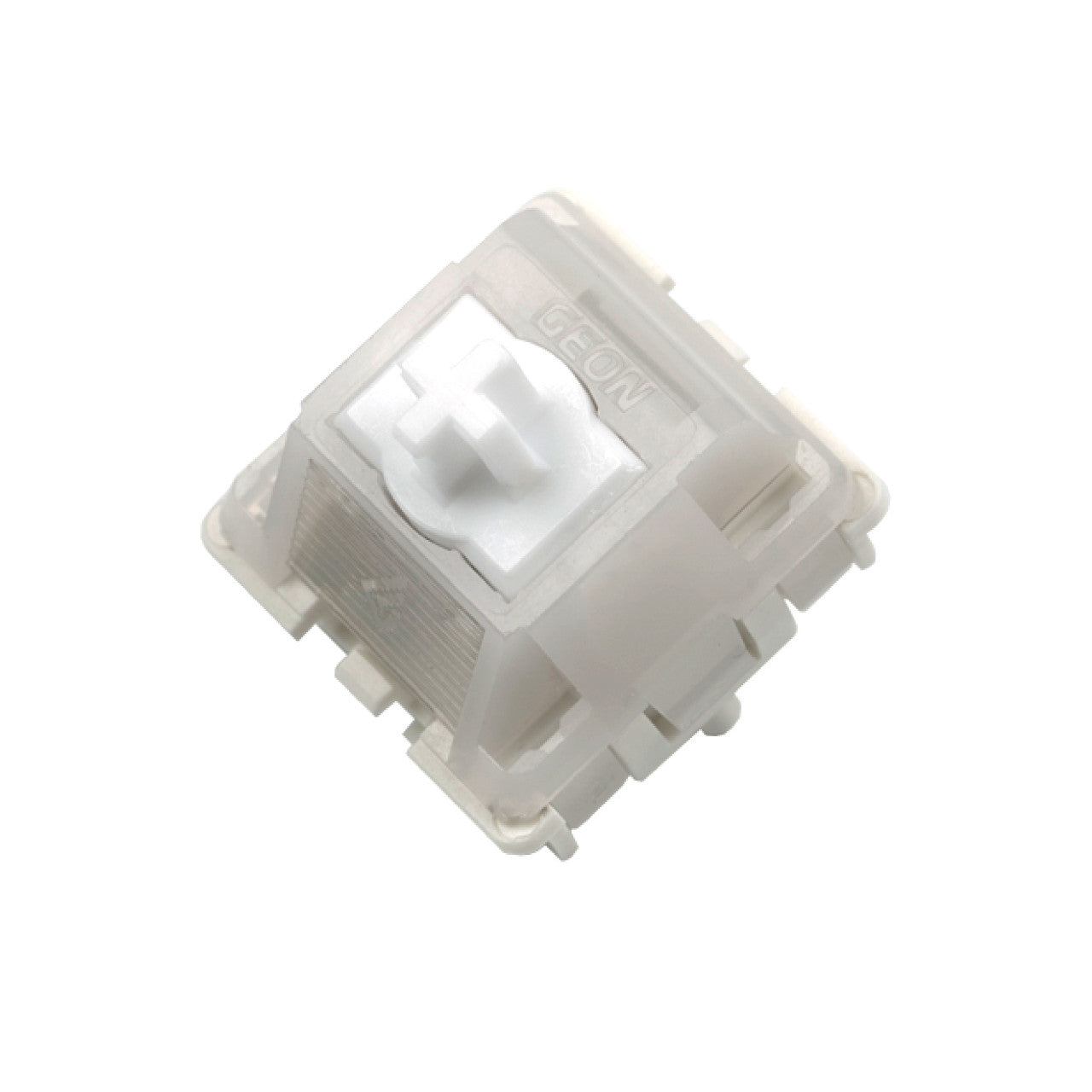

  • Mechanical keyboard switch angled view, clear case with white cross stem
1 2

Geon Raw HE

Geon Raw HE

Out of stock

Rs. 350.00
Rs. 400.00 Rs. 350.00
Sale Sold out
Tax included. Shipping calculated at checkout.

In-stock, ships in 2-3 days.

NOTE: This is a analog Hall Effect switch and only compatible with Hall Effect PCBs. It will not work with mechanical boards.

1QTY = 10 pcs

Type Linear
Initial Force 40g
Bottom Out Force 50g
Pre Travel 0.1 ~ 3.3mm (Analog)
Total Travel 3.4mm
Spring Length 15mm Single Stage
Top Housing PC
Bottom Housing Nylon
Stem POM
Pre Lubed Yes
Mounting 2-pin
LED Support Yes



Magnetic Flux

 Initial 160Gs
Bottom Out 720Gs


Manufactured by GEONWORKS (OEM)

This switch is a Hall Effect switch, a mold designed by Geon that features high precision due to its low mold cavities.
It has a full-travel of 3.4mm and a unique design with a through-hole bottom housing but with a pole touching the bottom.
It is an HE switch, which is similar to MX switches, so it can be used without any foreign feeling.

View full details
