[Group Buy] Constance TKL

Designed by Aiglatson Studio

This is a Group Buy [GB] Product and cannot be cancelled, please check all details before placing an order.

Group Buy period: October 10th to November 11th

Fulfillment Estimate Period: Q2 2025

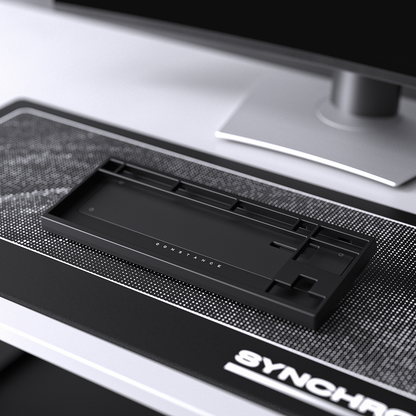

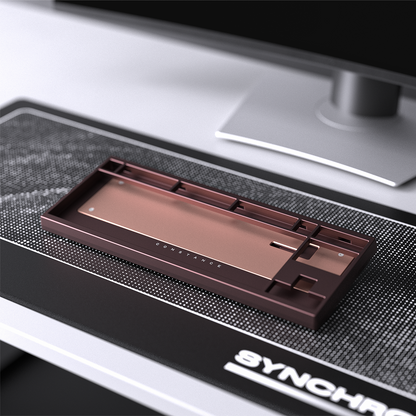

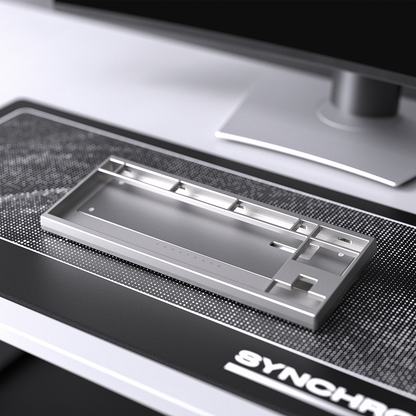

The Constance keyboard is a TKL-sized keyboard with a Split Plate Top-mount Mounting. The design principle is for Constance TKL to be a daily driver keyboard with a minimalist design but with attractive details that are not too flashy. And still giving importance to the typing feeling and sound as much as the design.

NOTE: PCB is not included in the kit and needs to be purchased separately.

Link for add-ons: Constance TKL Add-Ons

Design Features

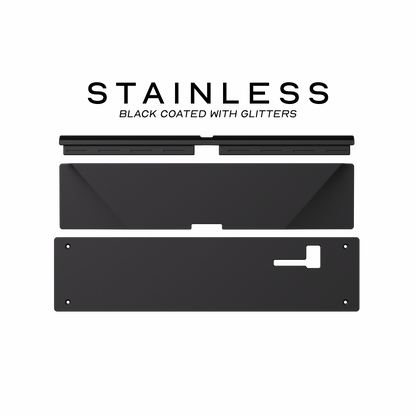

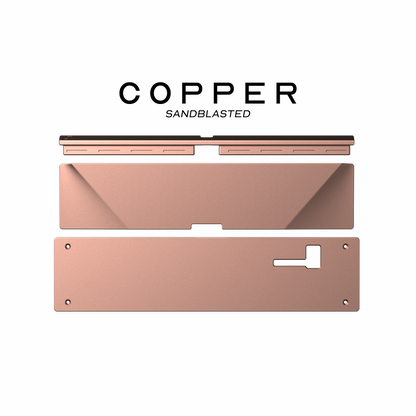

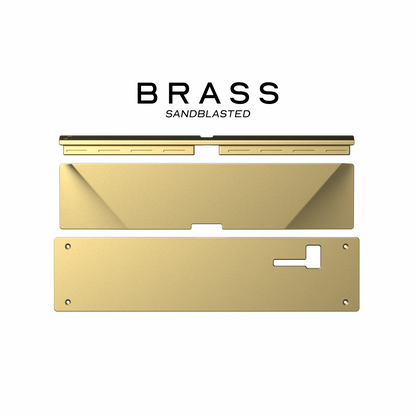

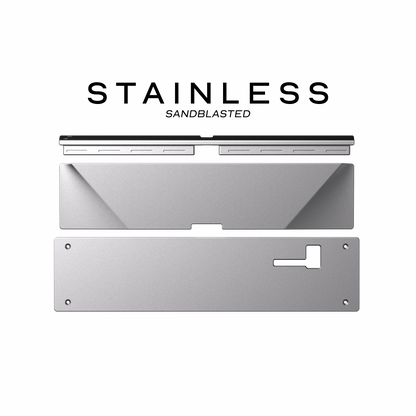

The Constance TKL is a keyboard with a typing angle of 9 degrees, an EKH height of 23.799 mm. Comes with a total of 3 Weights: Inside, Outside and Toblerone, resulting in a weight after building up to 3,480 grams for brass weights (Brass Weights) and 3,420 grams for stainless steel weights (Stainless Steel Weights).

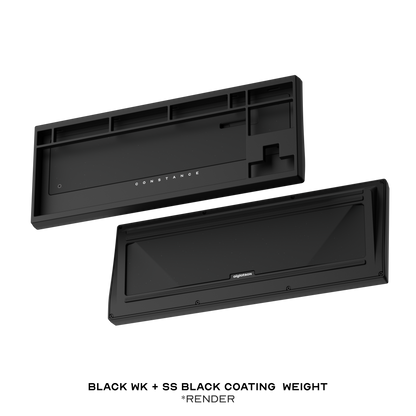

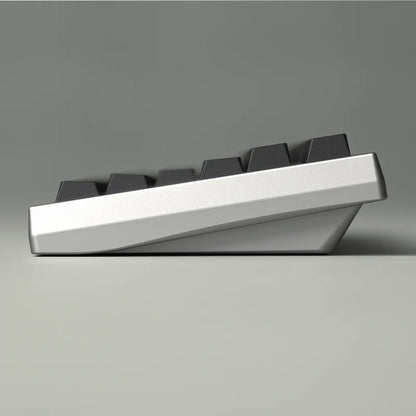

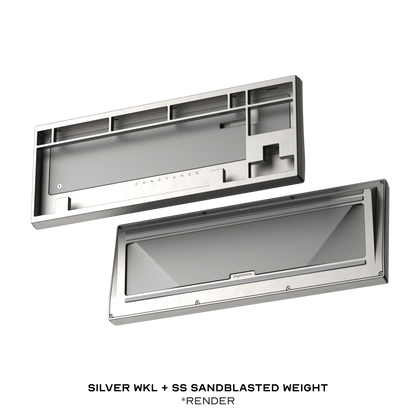

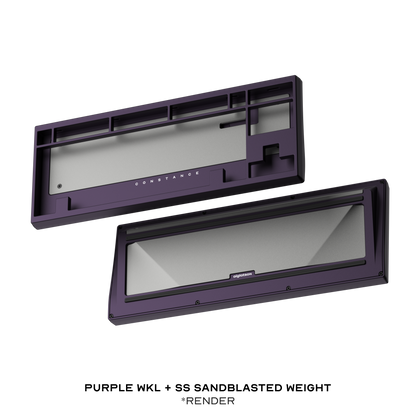

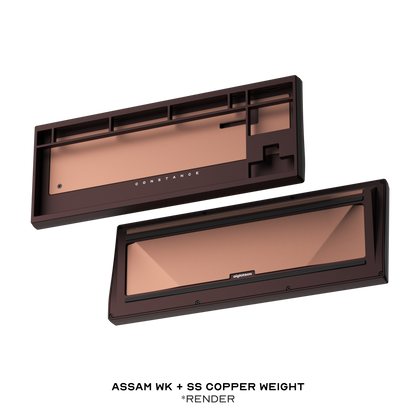

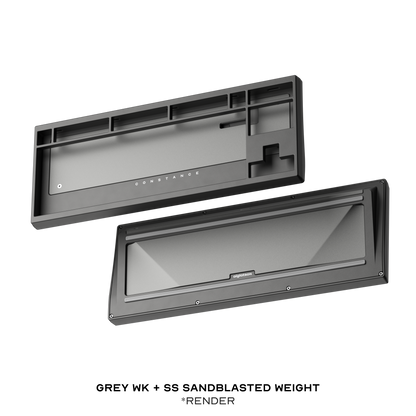

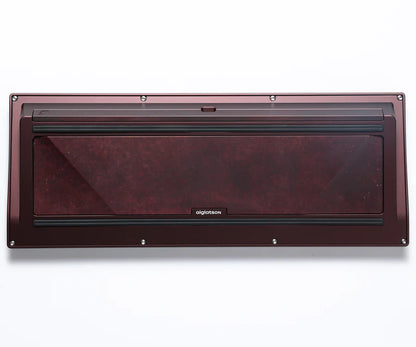

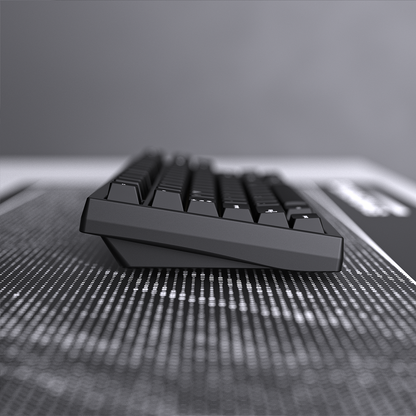

The top case is designed to be simple and clean with soft edges. But the highlight of the board is external weight and side profile. External weight has a curved cut to play with light to make it look dimensional, and the side profile is classic HG Side that adds a slight curved cut, making the overall design look more unique, soft and comfortable to the eyes. Although overall this keyboard looks simple, every edge and angle has been carefully considered for size and angle to make the Constance TKL design as detailed and perfect as possible.

Mounting and Plate

Constance TKL is a Top Mount keyboard that comes with Split Plates similar to Glare TKL and Albatross TKL keyboards, by separating 60% Cluster and Function Row from Navigator Cluster. During the development, we experimented with both Full Plate and Split Plate and found that separating Plates gives a higher Sound Profile (High Pitch) and is clearly louder, which meets our needs. In addition, the layout is symmetrical, making the Mounting Point symmetrical for a stable and consistent typing feel. We have also added a Cutout between Function Row and Number Row (only Aluminum Plate and Carbon Fiber Plate) to increase Flex for Alpha for hard Plates.

PCB Layouts:



Specifications

• Layout: F13 TKL (88%) WK and WKL
• Mounting: Split-plate top mount
• Typing Angle: 9 Degrees
• Materials: Aluminium 6063 case with brass (sandblasted, spray coated, Patina),
• stainless steel (sandblasted), or copper (sandblasted) weights
• Front Height: 18.5 mm, EKH 23.799 mm
• Plate Options: Aluminium Full/Half, Carbon Fiber Full/Half, Polycarbonate Full/Half,
• and Polypropylene Full/Half
• Weight (Built): Approximately 3,480g (Brass weights), 3,420 g (Stainless steel
• weights)

Parts included in the keyboard kit

• 1x Top case
• 1x Bottom case
• 1x Internal weight
• 1x External weight
• 1x Toblerone weight
• 1x Full plate of choice
• 2x Black Feet
• 1x Carrying Case
• Screws and packaging


Disclaimers:

• The PCB is not included in the keyboard kit and must be purchased separately as an add-on.
• A full aluminium plate is already included in the keyboard kit.

• The PCB add on option already includes a DB and JST cable

• The keyboard is compatible with other H88 PCBs

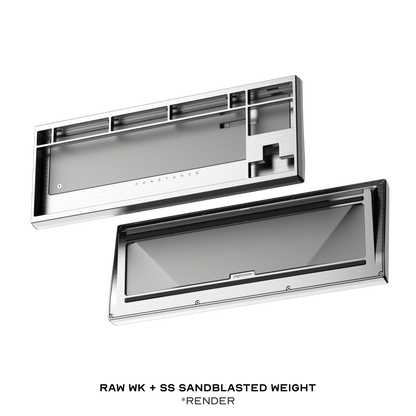

• Raw cases have been clear anodized to prevent oxidation.
• Raw cases have no surface treatment and may have machining marks and scratches.
• Refunds or exchanges will not be provided for scratches on Raw cases; only cracks or dents are eligible for such requests.
• Patina weights are handmade; therefore, every unit will be unique.
• Internal surfaces are not considered during QC.
