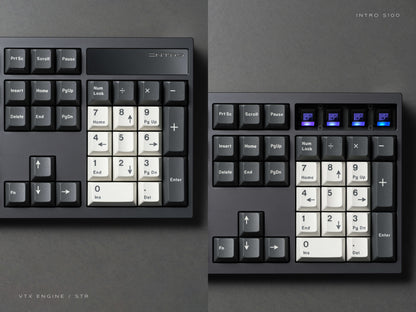

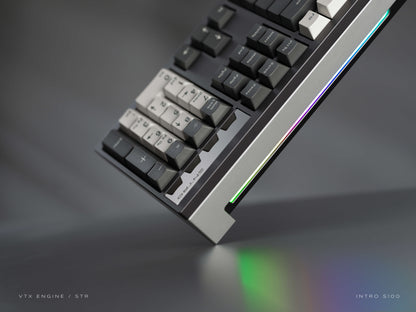

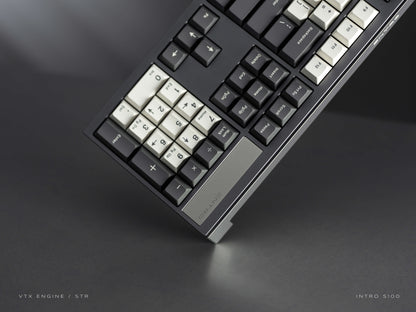

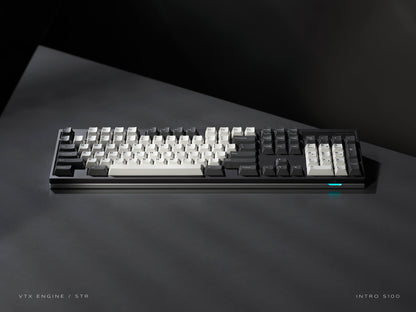

[Extras] Vertex Intro S100

NOTE: THIS IS A BAREBONE KIT ONLY AND DOES NOT INCLUDE KEYCAPS OR SWITCHES.

Add-Ons are available here: Add-Ons

Basic information

PROJECT NAME: Intro S100;

LAYOUT: 100% full size;

SIZE: 437.35x136.72x39.85mm;

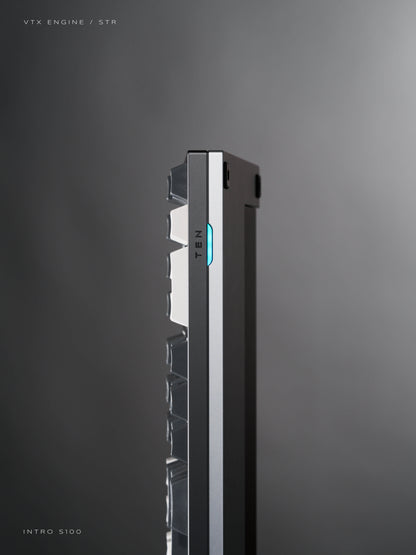

FRONT HEIGHT:15.8mm/EKH=21.7mm (without feet);

MOUNTING: PCB gasket mount;

WEIGHT: ≈2450g(unbuild)/3000g(built);

MATERIALS: aluminum/SS/PC;

PCB: FR4, 1.6mm, non flex cuts;

FIRMWARE: VIA tri-mode (with 4400mAh) only;

LAYOUT SUPPORT (SOLDERING)

LAYOUT SUPPORT (HOT-SWAPPED):

PLATES:

Alu

FR4

PC

PP

CF

Part List

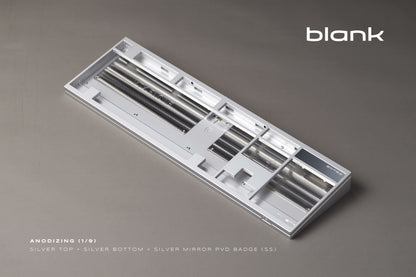

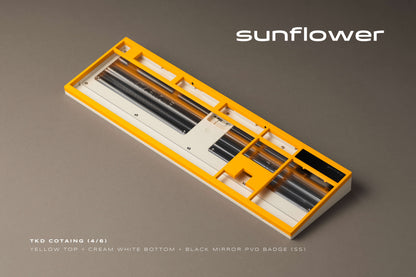

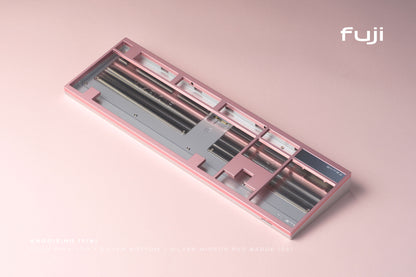

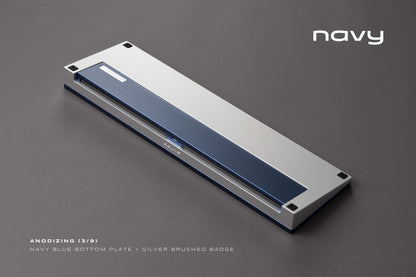

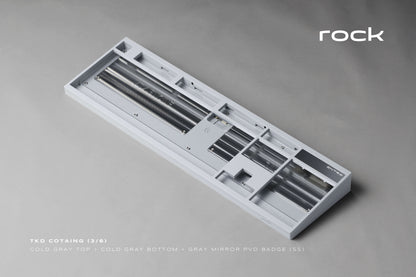

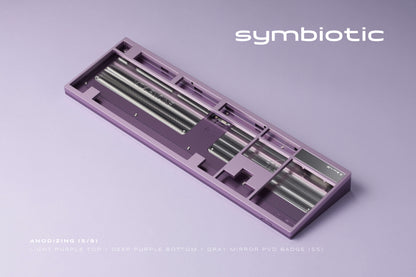

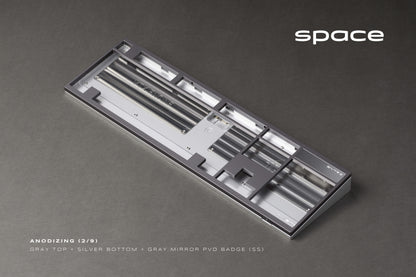

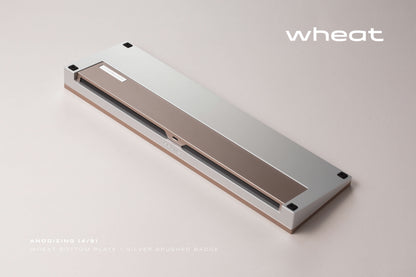

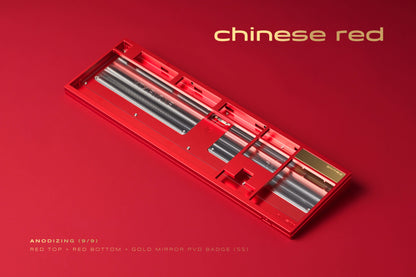

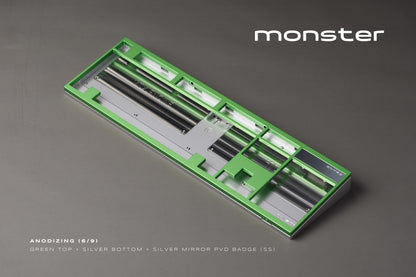

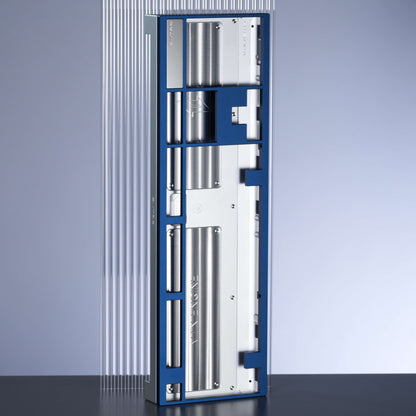

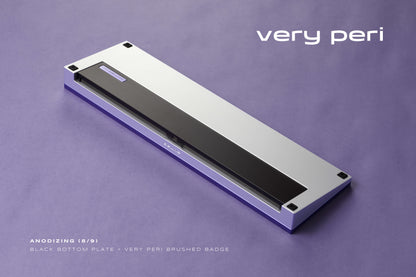

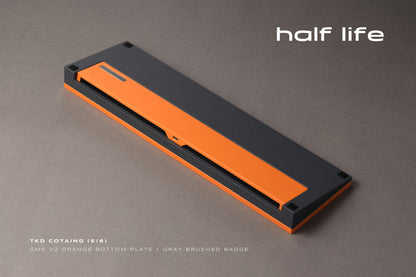

Cases(top+bottom) x1set;

Internal weight(SS) x2;

PC internal cover x1;

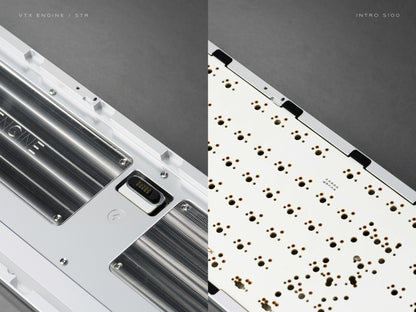

PCB(with DB+2.4G receiver) x1;

Plate x1;

Bumpons x1set;

PCB stabilizer (for full size) x1set; Foam kits (plate/PE/case) x1set.
