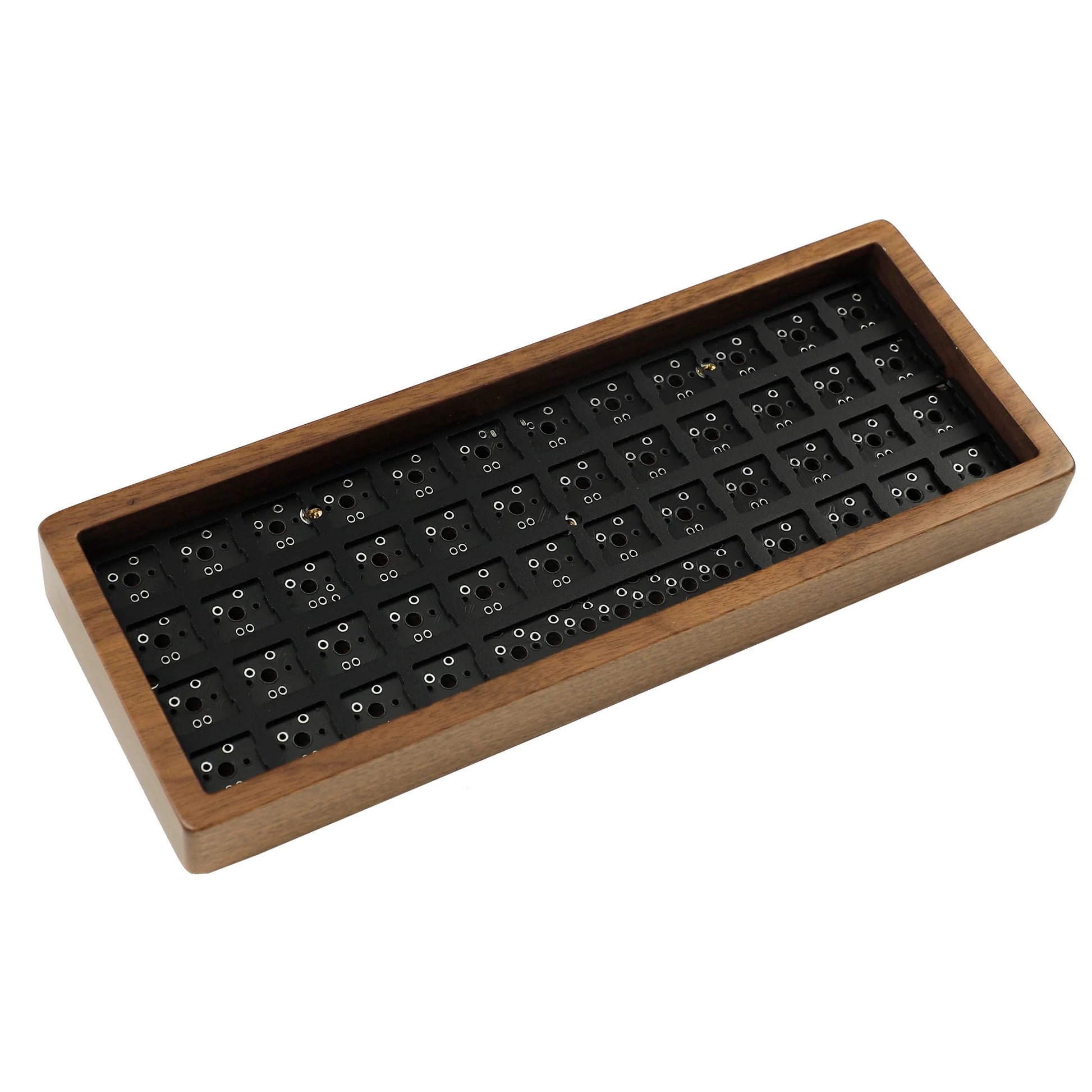

• Walnut keyboard base with black PCB and key switch cutouts

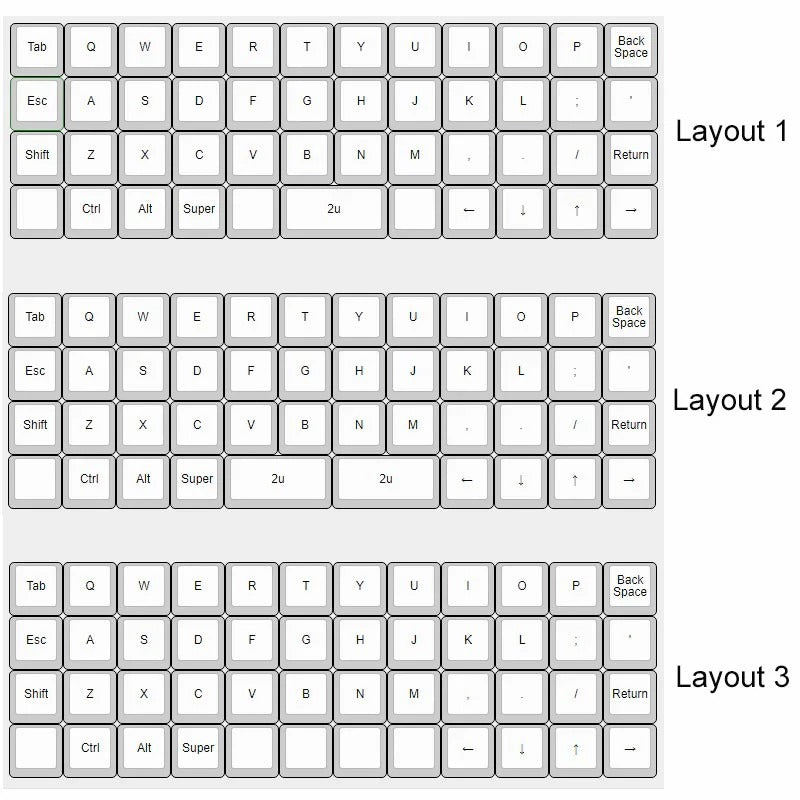

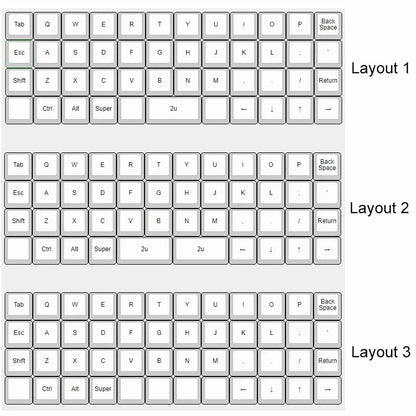

  • Keyboard layout chart showing Layout 1, Layout 2, and Layout 3 key positions
  • Walnut keyboard base with mounting holes, 245mm length and 86.8mm depth

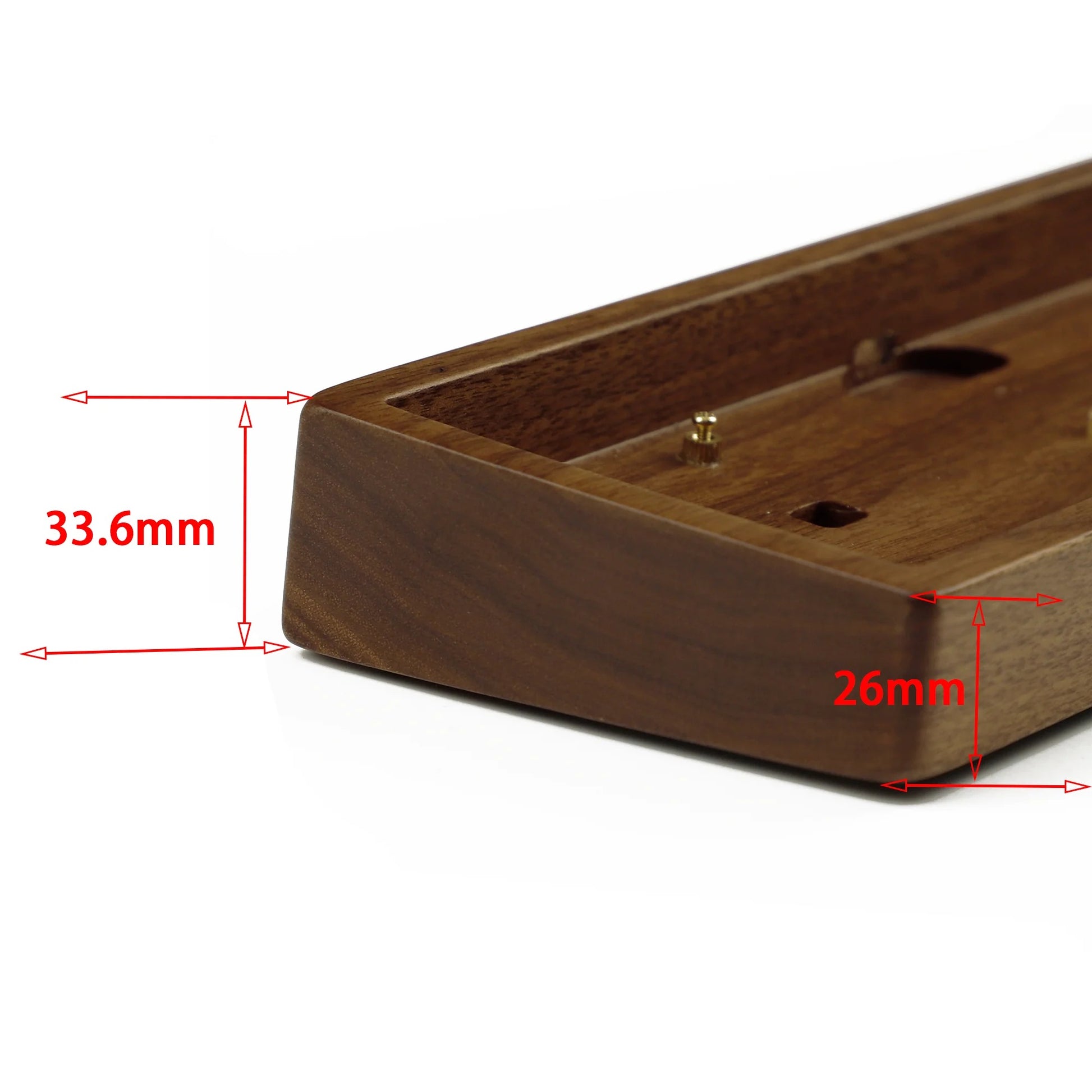

  • Walnut keyboard base side view with height 33.6mm and thickness 26mm

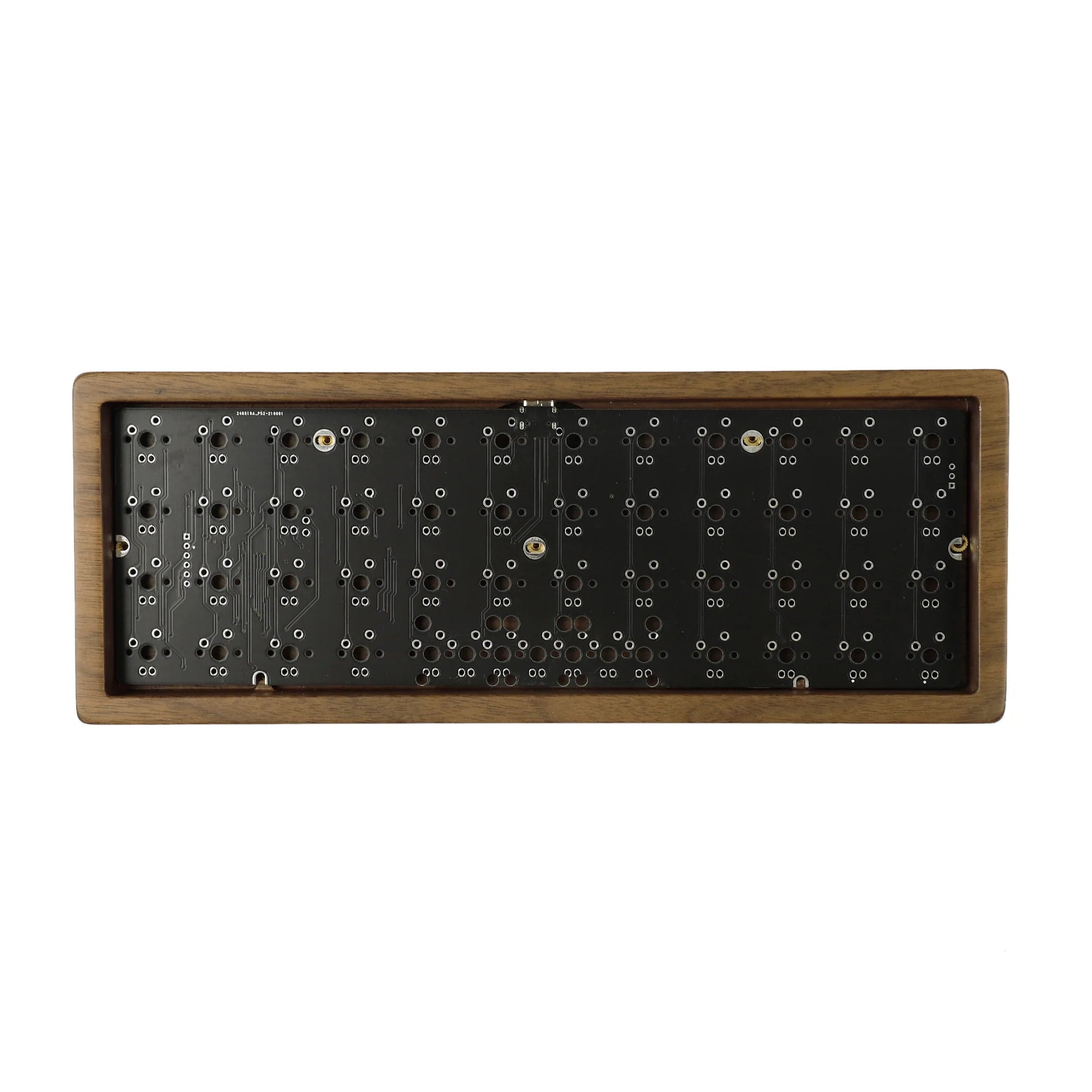

  • Walnut keyboard base with black PCB and switch cutouts across the plate

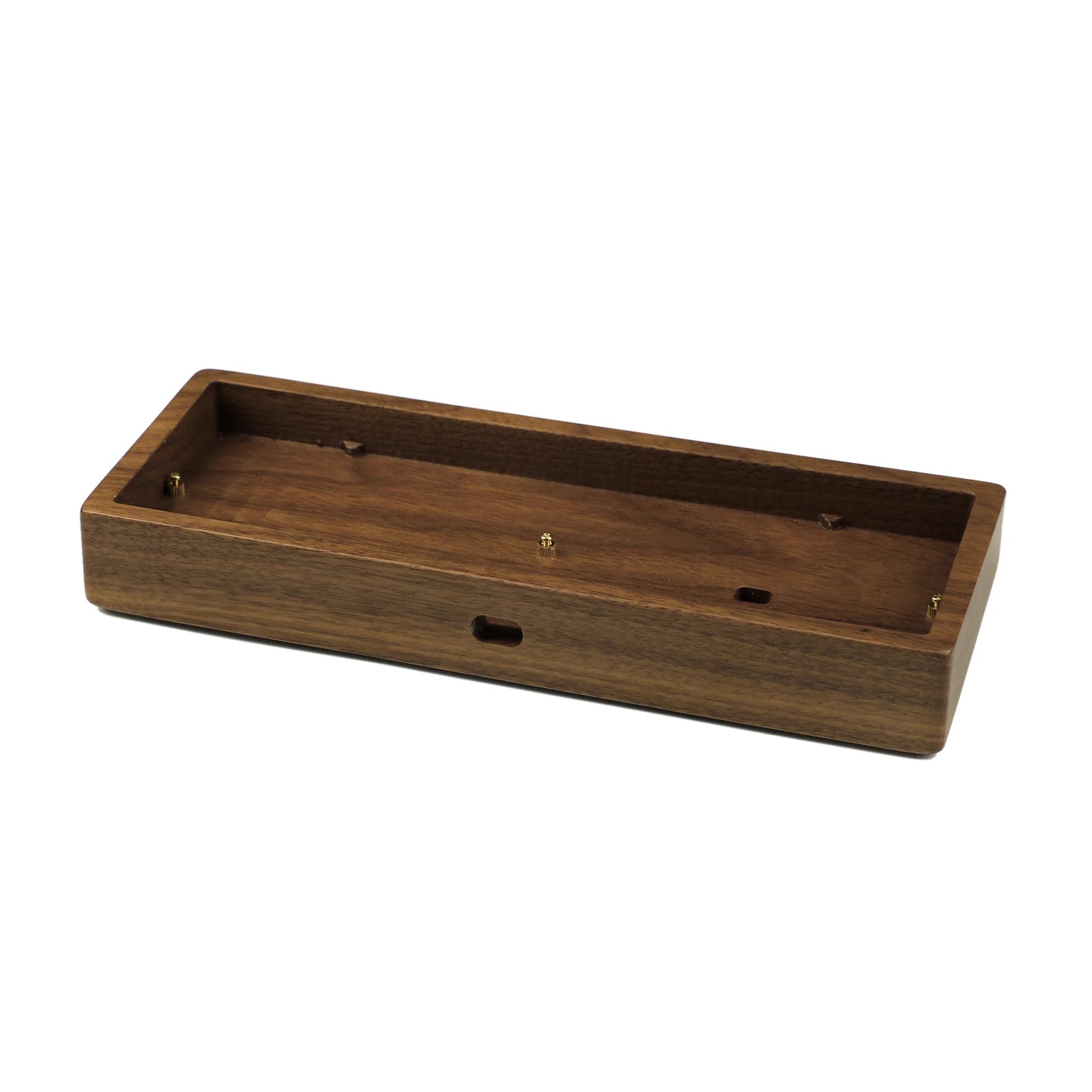

  • Walnut keyboard base tray with screw holes along the interior

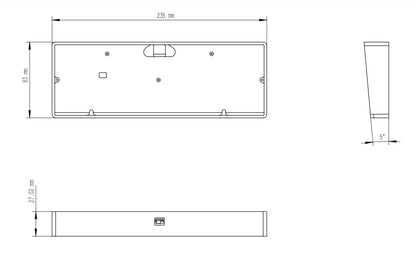

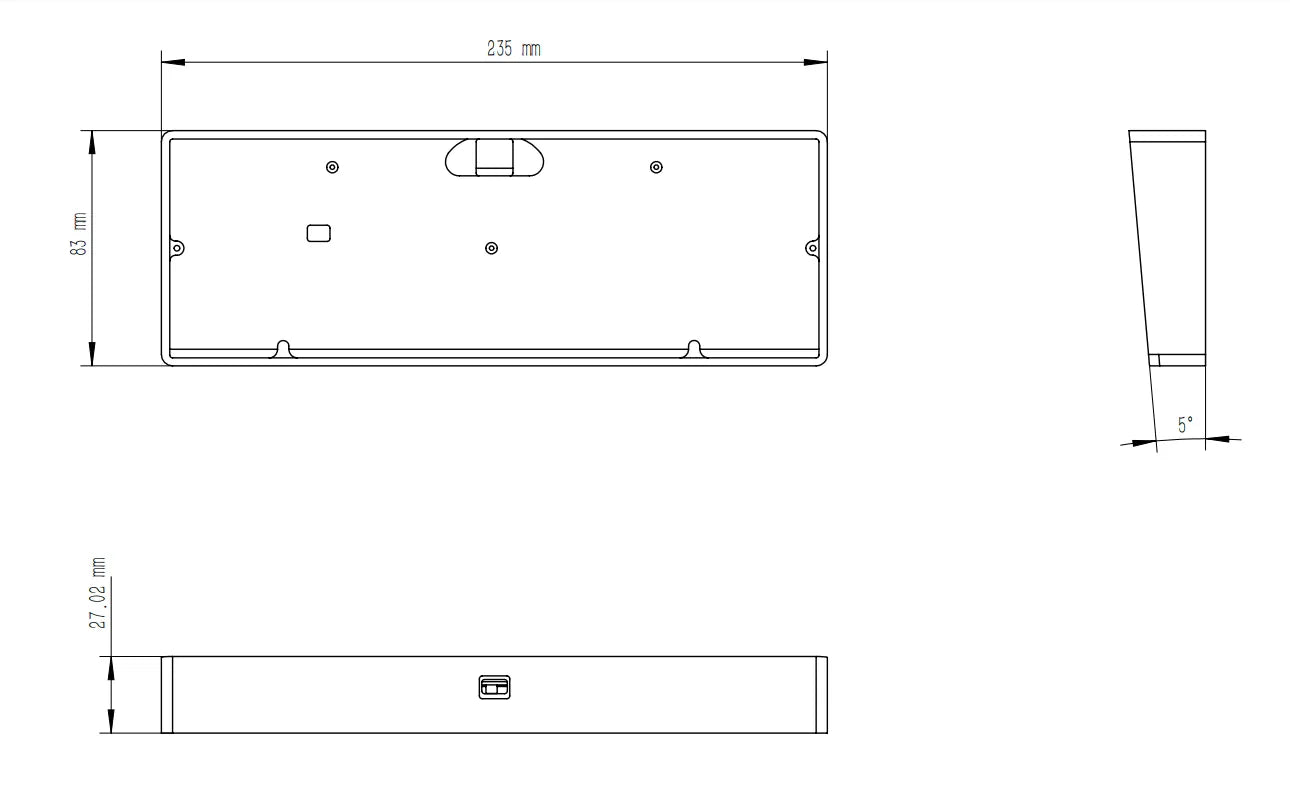

  • Keyboard base technical drawing with top view, side profile, and dimensions
1 7

YMD Air40 Walnut Keyboard Kit

YMD Air40 Walnut Keyboard Kit

Low stock

Rs. 6,500.00
Rs. 8,100.00 Rs. 6,500.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Layout

How to Assemble the kit

1.Put around 4-5 switches into plate corners and middle part. Then plug switches into the PCB socket.

2.After PCB and plate are fixed, put other switches on one by one.

3.If there is a lot of resistance while inserting the switches, stop and check whether the switch pin is bent, if it is, bend it over and try again.

Included in the Kit:

  • Wood Case
  • Alu Black Plate
  • Hotswap Type C PCB with RGB switch leds
  • Rubber Feet
  • Cable
